Description

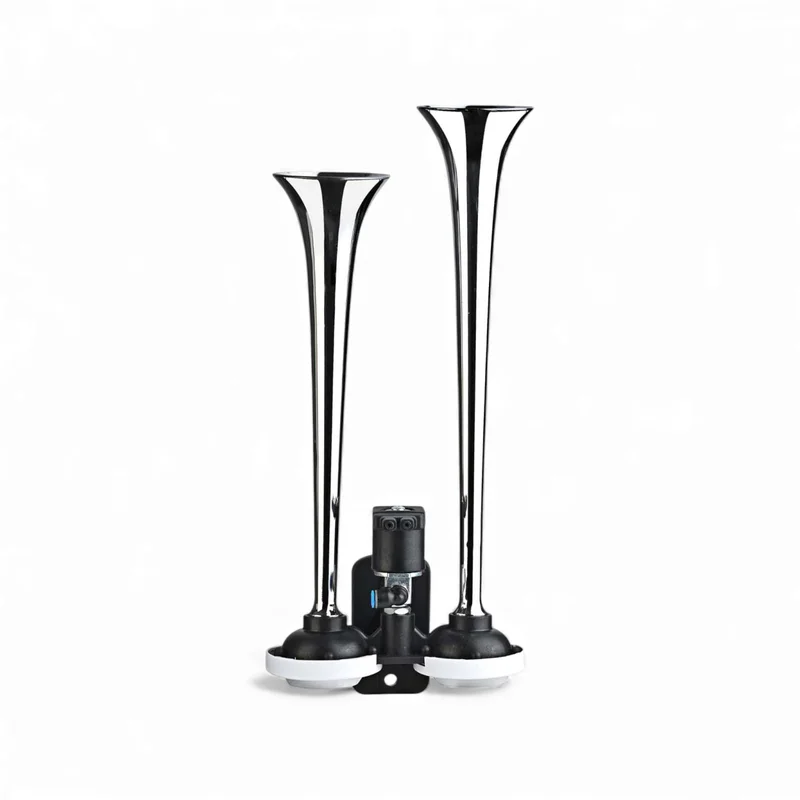

Double-pipe horn with a very loud sound signal. Take control of the road with an air horn from Hi-Do.

Installation: Mounted using the bracket fitted to the horn. It is then supplied with constant compressed air, 6–10 bar via a 6 mm air hose, and controlled with 24V through the connectors on the horn, 6.3 mm flat terminals.

Voltage: 24V

Current at 24V: 2A

Air pressure: 6–10 bar

Sound level at 2 metres: 125 dB(A) ±5 dB

Frequency: 340–430 Hz
